Basic parameters:

1. Model: FS07W

2. Type: on-board MP5

3. System: Quanzhi melis system

4. Software solution: F133

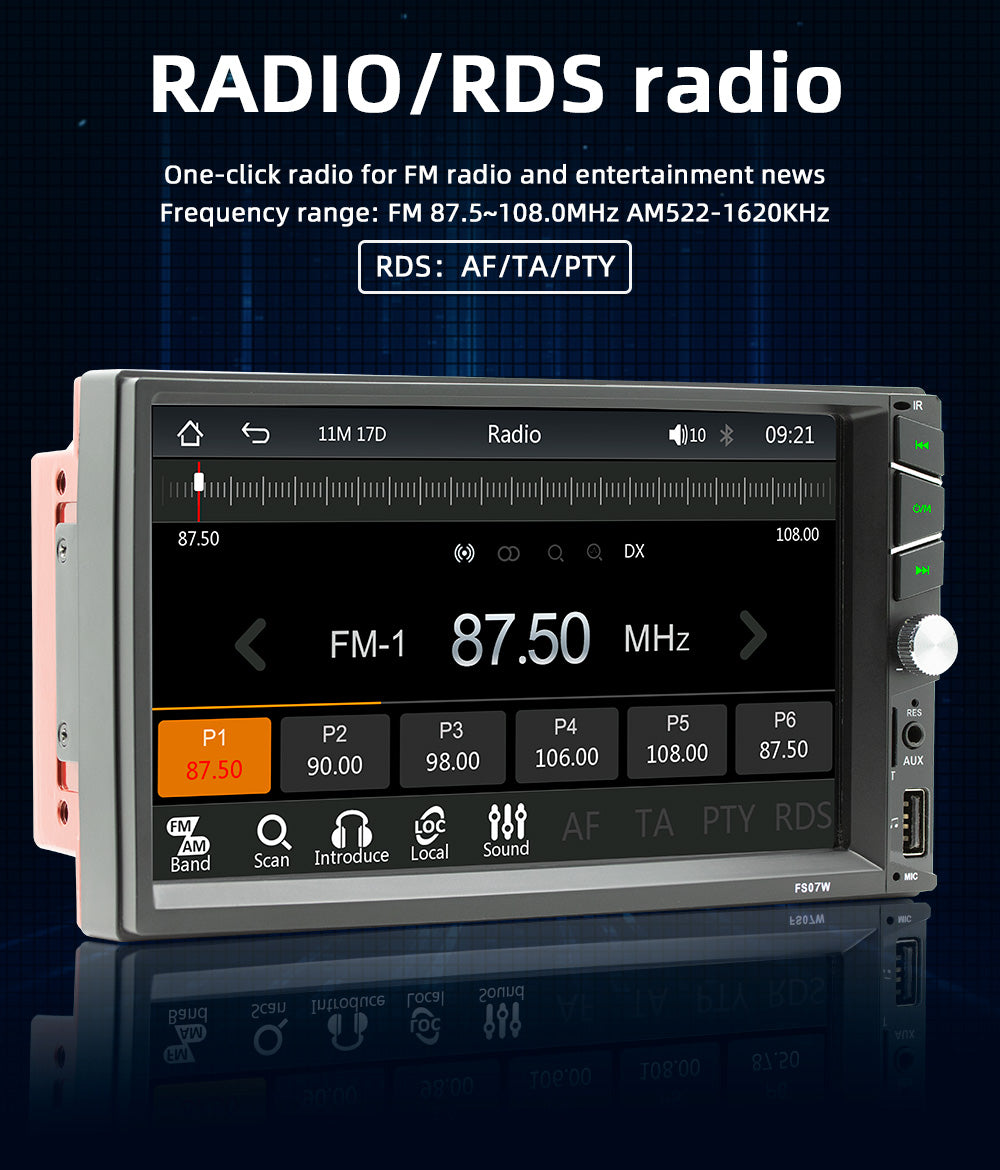

5. Radio frequency: FM 87.5~108.0MHz AM522-1620KHz

6. Radio IC: 4732

7. Power amplifier IC: CD7388CZ

8. Output power: 60Wx4

9. Working voltage: 12~14.4V

10. Working temperature: - 10~60 ℃

11. Bluetooth version: 5.1 (default name: CarPlay)

12. Wifi frequency: 2.4G, 5.2G, 5.8G

13. GPS signal: not supported

Performance Parameter:

1. CPU：F133

2. Running memory: 533M

3. Storage memory: None

4. Display resolution: 1024x600

5. Screen size: 7-inch HD

6. Dimension parameters

7. Installation size: 178x103MM

8. Shell size: 178x100MM)

9. Host depth: 30MM

10. Functional parameters

11. Mobile phone interconnection: support

12. Locating car search: not supported

13. Screen rotation: not supported

14. Reverse image: support (camera optional)

15. Play video warning: Supported

16. Steering wheel control: support key learning

17. Video output: support

18. Offline map: not supported

19. DASH CAM: Not supported

20. GPS navigation: not supported

21. USB interface: front USB2.0 reading (black)+rear USB2.0 reading x2 (USB1 unavailable)+rear 2.1A charging interface+reserved test interface

22. TF card: supported

23. Reset button: supported

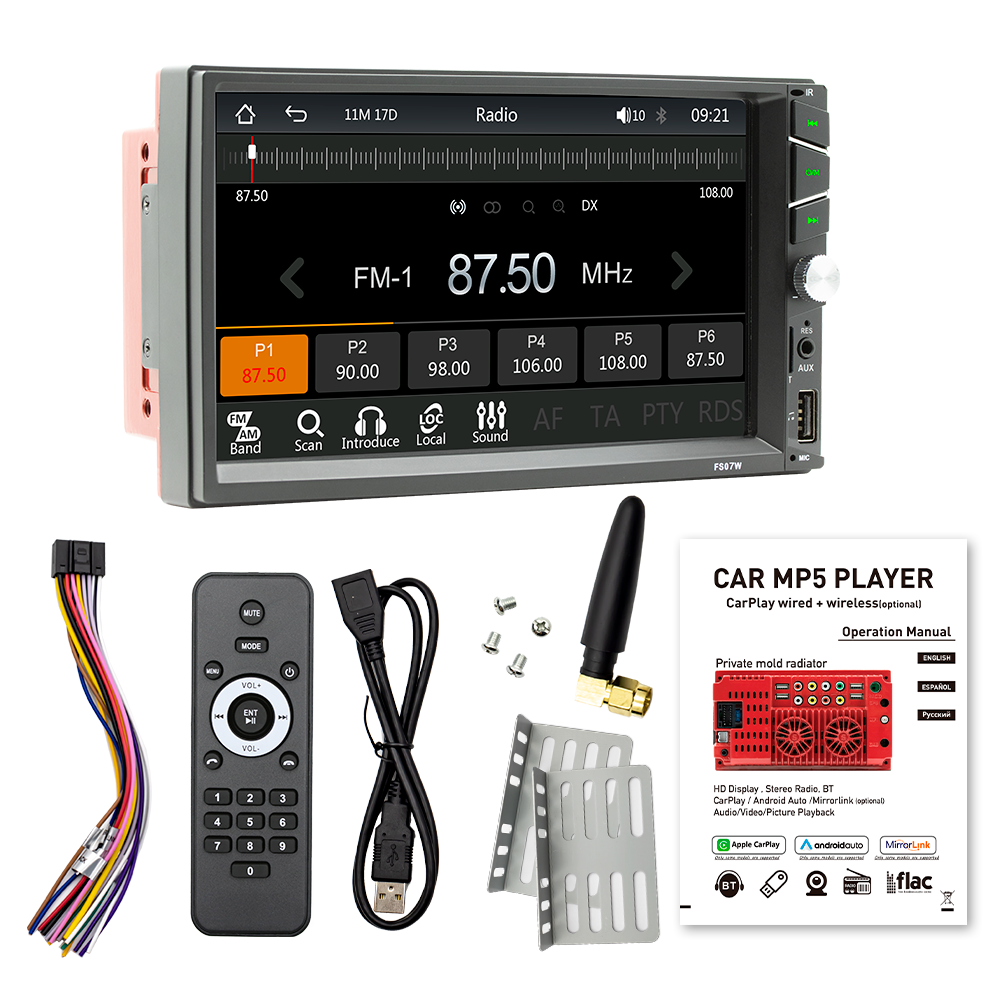

• 1 * 2 Din Carplay Head Unit FS07W
• 1 * Remote Control
• 1 * 16 Pin harness
• 1 * Car Radio User Manual
• 1* Kraft Packaging Box
